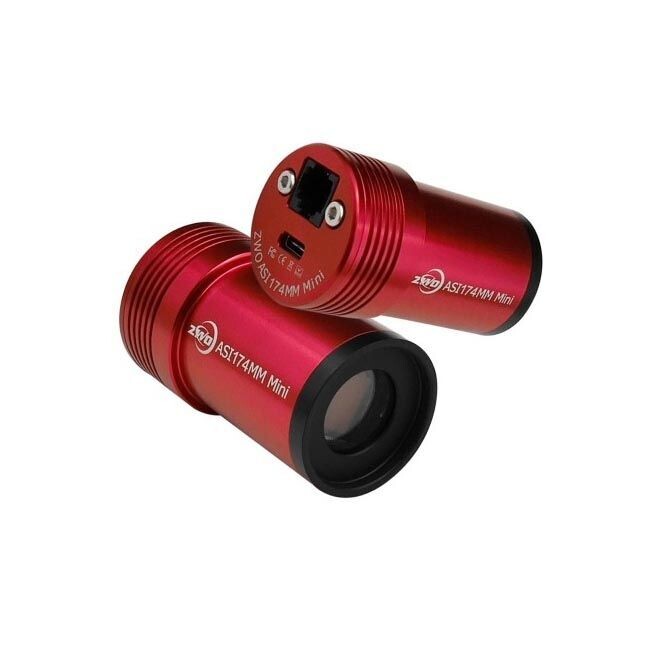

This ASI174MM camera, the first ZWO mini camera, incorporates the Sony IMX174LLJ/IMX174LQJ 1/1.2" sensor (11.3 mm x 7.1 mm). Contains 1936 x 1216 pixels with a pixel size of 5.86 µm x 5.86 µm. The ASI174 Mini provides 12-Bit ADC and a 77% QE peak.
Astrophotography Performance
The ZWO ASI174 MINI offers excellent performance for both planetary imaging and guiding. Highlights include low read noise, high dynamic range, QE peak of 77%, AR protective window, and a lot more.
ASI174 Mini vs. ASI174MM
When compared to the ASI174MM, the ASI174 Mini is lighter, more compact, and can achieve focus at the same position as the eyepiece. See images for a detailed comparison.
USB 2.0 and ST4 Ports
ZWO Mini cameras feature one USB2.0 type C port. Type C ports are optimally suited for mobile phones as the positive and negative sides of the adapter are not important. The ST4 port connects the ASI174 Mini directly to a mount's autoguiding port.
High Sensitivity
When designing the ASI174 Mini, ZWO considered sensitivity to be of utmost importance. Being able to look for a guide star is essential. So when they were first starting out, ZWO thought to use a monochrome sensor to design their guide camera since mono sensors have much higher sensitivity when compared with color sensors. ZWO ultimately decided to go with the 290 and 174 monochrome sensors which have a QE peak of approximately 80%, detecting a larger number of stars in view. In addition, guiding shortens exposure time.
Large FOV Guiding
Designed for big FOV guiding, the ASI174 Mini serves as a useful OAG for locating a guide star. When using an OAG in conjunction with an RC or SCT, the most difficult part is searching for a guide star. The ASI174 Mini features a large 1/1.2" sensor for a 4x bigger FOV than 120 mm.
ASIair Plus Camera Control (sold separately)
There is a wireless camera control solution available for this camera, and it's called the ZWO ASIair Plus. This small wireless module allows you to focus, take images, make adjustments with your smartphone or tablet, and even do plate solving and computerized mount control with the built-in SkySafari bridge. If you'd like to add an ASIair Plus to your camera order, you can find it in the suggested accessories section.
